Product List

Spiral Wraps






Colour :
Natural Black and others colours are available upon request
Operating Temparature :
-500Cto850C
Chemical Resistance :
to Acids, Alkali?s & Organic Solvents
Ultimate Elongation :
550%

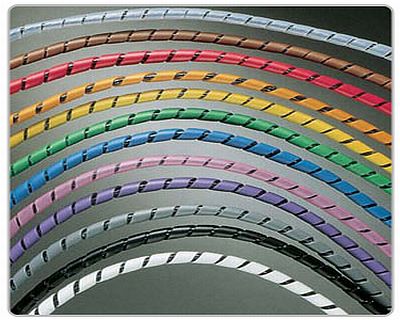

SPIRAL Wraps applies a strong grip developed both from its torsional cut and the memory of Plastic material used. It remains its strength under repeated flexing and bending, follows wire path easily, and makes neat, free-running cables. It is extreamly useful on long continous runs where many leads are required, wire can enter or break out any point.

SPIRAL Wraps can be removed easily for troubleshooting and then reapplied.

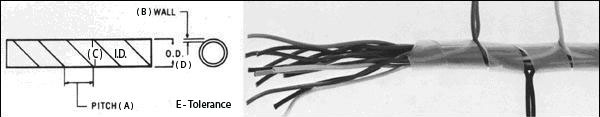

Part No
Length
A
B
C
D
E
ASB-1
50 Mt.
5.0 mm
0.5 mm
2.2 mm
3.2 mm
+/- 1.0 mm
ASB-2
50 Mt.
10.0 mm
0.7 mm
4.8 mm
6.2 mm
+/- 1.0 mm
ASB-3
25 Mt.
11.5 mm
0.9 mm
7.4 mm
9.2 mm
+/- 1.0 mm
ASB-4
25 Mt.
13.0 mm
1.0 mm
10.2 mm
12.2 mm
+/- 1.0 mm
ASB-5
25 Mt.
15.5 mm
1.4 mm
12.4 mm
15.2 mm
+/- 1.0 mm
ASB-6
25 Mt.
18.0 mm
1.4 mm
16.2 mm
19.0 mm
+/- 2.0 mm
ASB-7
25 Mt.
22.0 mm
1.5 mm
22.0 mm
25.0 mm
+/- 2.0 mm
